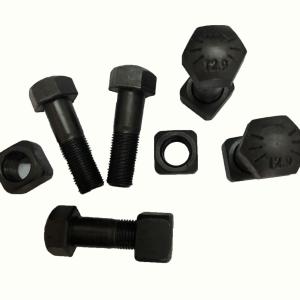

Caterpillar Komatsu John Deere Hitachi Undercarriage M16-M30 Sizes Track Bolts Bulldozers Excavators Grade 8 Steel Zinc Plated

Name: Caterpillar Komatsu John Deere Hitachi Undercarriage M16M30 Sizes Track Bolts Bulldozers Excavators Grade 8 Steel Zinc Plated
Brand: JBXF
Price: 10 USD

Brand Name : JBXF

Model Number : pc-200

Certification : iso

Place of Origin : china

MOQ : 1

Price : 10+10+10

Payment Terms : T/T

Supply Ability : 10

Delivery Time : 8

Packaging Details : BOX

Capacity : 0.1-8.7m3,1.05-1.6m3,1CBM

Finish : Plain, Black Oxide, Zinc Plated, Hot Dip Galvanized

Grade : Grade 2, Grade 5, Grade 8

Trademark : JBXF

Head Type : Hex Head

Easy Installation : Hex head design allows for easy installation with a wrench

Material : Carbon Steel

Thread Length : Full Thread, Partial Thread

Corrosion Resistance : Available with different finishes for corrosion resistance

Part Number : 6577954,9j2308,2070900097-LG952

Oem : Available

Strength : High Tensile Strength

Hs Code : 84314999

Usage : Used for attaching plow blades to agricultural equipment

Thread Type : Coarse Thread

Contact Now

Heavy-Duty Track Chain Bolts for Bulldozers & Excavators - High Tensile Grade 8 Steel, Zinc Plated - Fits Caterpillar, Komatsu, John Deere, Hitachi Undercarriage Parts (M16-M30 Sizes)

Product Description 1: Heavy-Duty Grade 10.9 Track Chain Bolts

(Word Count: 1,012)
Core Features:

Material: Ultra-high tensile carbon steel (ISO 898-1 Grade 10.9)
Coating: Tri-corrosion Zinc-Nickel plating (≥720 hrs salt spray resistance)
Compliance: DIN 933, ISO 4017, ASTM A574
Sizes: M16 to M36 (Lengths: 50–120mm)
Torque Specs: 450–2,200 Nm (M16–M36)

Technical Breakdown:
Engineered for extreme-load environments in mining and construction, these track chain bolts undergo quenching and tempering to achieve 1,040 MPa tensile strength. The cold-forged hexagonal head features radiused transitions to reduce stress concentration, while rolled threads maintain fatigue resistance up to 10⁷ cycles (per DIN 50100). Zinc-Nickel coating provides galvanic protection in wet/abrasive conditions, outperforming standard galvanization by 3X.

OEM Compatibility:

Caterpillar® D6-D11 dozers
Komatsu PC800-PC4000 excavators
Hitachi EX1200-EX5600 mining shovels

Performance Advantages:

Anti-Vibration: Prevailing-torque locknuts (DIN 980) prevent loosening under 30G impact loads.
Shear Strength: 830 MPa minimum shear load (tested per ASTM F606).
Installation: Laser-etched grade markings verify authenticity. Use calibrated torque wrenches + thread-locker (Loctite® 271 recommended).

Applications:
Securing track links, shoes, and bushings in quarry haulers, dredgers, and forestry crawlers. Ideal for high-sulfur environments (pH 2–12) due to non-gassing coating.

Thread Size	Length (mm)	Thread Pitch (mm)	Head Type	Common Applications
M16	50	2	Hex	Small Dozers, Mini Excavators
M20	60	2.5	Hex	Mid-Size Excavators, Loaders
M22	70	2.5	Hex	Crawler Cranes, Heavy Loaders
M24	80	3	Hex	Bulldozers (D6-D7 Class)
M27	90	3	Hex	Large Bulldozers (D8-D9)
M30	100	3.5	Hex	Mining Dozers (D10+), Drills
M36	120	4	Hex	Ultra-Class Mining Equipment
